Rv Air Brakes

How They work & How to test that they work

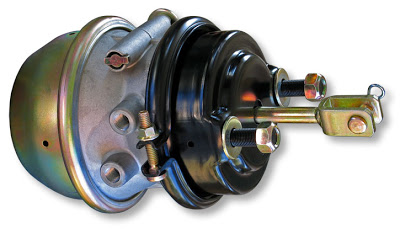

 maxicam

Commercial drivers who operate trucks fitted with airbrakes are required to pass an airbrake test to prove knowledge of dynamics maintenance and operation. RV‘s with airbrakes are exempt from the requirement but an understanding of the operation and systems is a must to stay safe and minimize repair costs.
The airbrakes on a RV Coach are the same as that of a commercial BigRig's airbrake systems . Modern systems have automatic air dryers that clear the compressed air of moisture and use automatic slack adjusters to keep the brakes adjusted at the wheels. These two conveniences help reduce bigrig daily maintenance tasks . Low use RV's require additional care as airdryers don't protect from storage condensation. After a long period of humid storage moisture may collect in the tanks and a yearly check and drain is advised. Slack adjusters at every wheel only need to be checked for adjustment and rarely ever need to be replaced unless they fail to provide a proper adjustment on inspection.
brakemaxicam2 One often overlooked check up is the parking brake. How the parking brake works: When you set the parking brake to park (pull out), air is removed from the chamber at the wheel (pumpkin looking thing). The air bladder in the chamber relaxes and allows a heavy spring to push the brakes tight. In the absence of air pressure the parking brake is set. This explains the loud GOUUHS noise you hear when you set the park brake as the bladder quickly releases the air . When you release the brake (push Knob in) air fills the bladder and compresses the spring, releasing the brake.

For the brake to remain off, the bladder must maintain air pressure while you drive. If the bladder leaks while in transit the park brakes will ;rub lightly against the drum ;wear out ;heat up ;cause a fire and ;render the service brake useless when it come time to stop.
Two test are required to check the parking brake. First test is checking the bladder for leaks. (not part of dot pretrip)

Start the engine and fill the coach air pressure up.
• Shut down the engine
• Chock the tires and release the park brake

• Go to the rear wheel air chambers and listen for air leaks
• I like to have less than a 10 lb loss of dash air pressure in 30 min


Second test is checking the actual park brake
Drive coach from a dead stop on level ground slowly forward
• 50 foot at 1 ½ MPH pull on the parkbrake to stop
• This should feel like an abrupt stop and dead stop

cdlBraketest

 "This parking brake test is only part of the complete air brake pretrip daily test the DOT requires commercial driver to perform, pass and record in their daily logs." Following the simple steps in this video prior to a camp trip can help achieve safe driving enjoyment.  Andrew from Advanced school of driving will explain the pretrip airbrake test

a good source with a less technical description on total air brake system is a manual published By the Canada DOT

How to Recover Steering with a Tire Blow Out Video

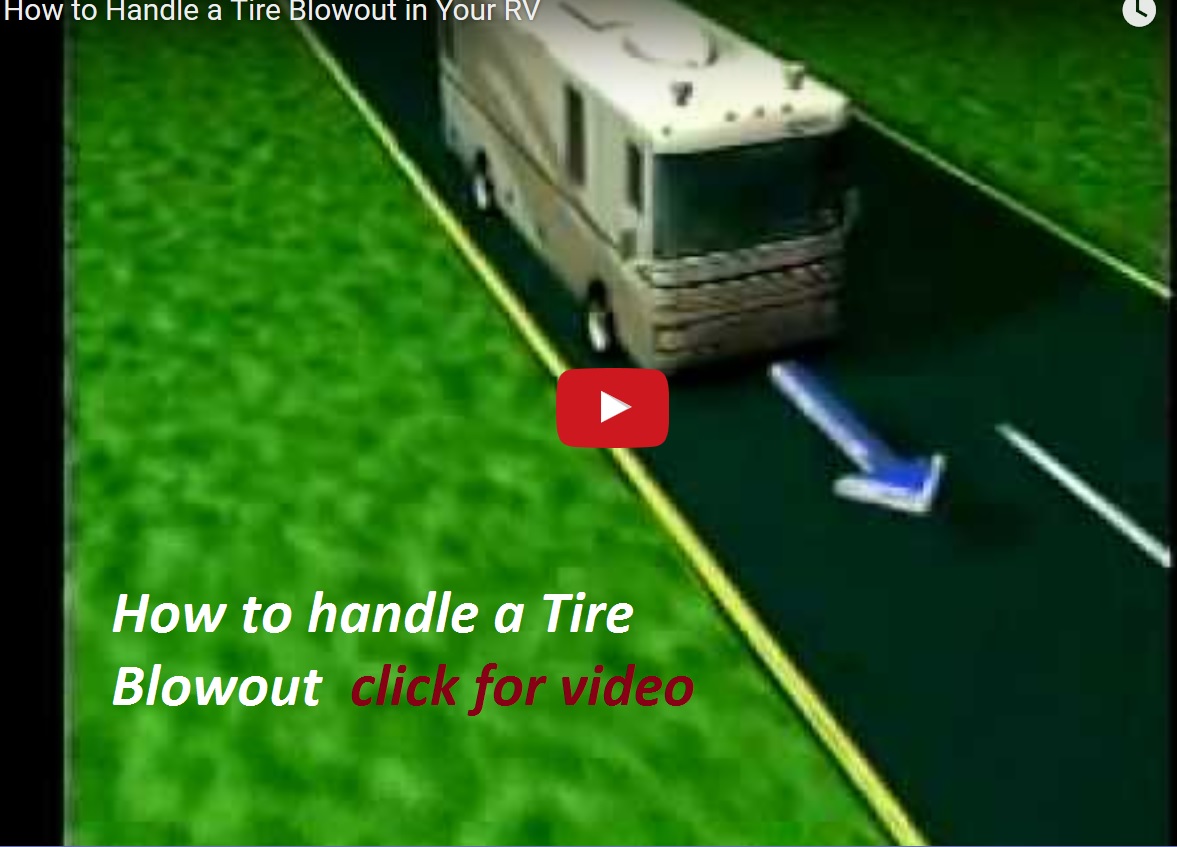

tireblowout



The first step is to give it more fuel, ‘step on the gas'. I have been told this before but never really understood the reasons why. This educational video produced by Michelin Tire will show simple steps to regain control of your RV in a blowout. The procedure is effective with bumper-pull , 5th wheel trailers as well as motorized rv's. Click read more to watch the video. this is a must see

RV refrigerator, a cool deal

refer

RV and Home refrigerators differ not only in size but also in dynamics they employ to chill. Home refrigerators use an electric pump or compressor to pressurize Freon gas. . RV refrigerator uses heat of a gas flame or electric heater to boil and process the ammonia in the system called absorption cooling. Although the cooling process of rv refrigerators does not employ moving parts, movement of the air and gas is a major requirement for the rv refrigerator to work. Three movements required are;


1. Movement of air behind the refer
2. Movement of air in the refer
3. Movement of ammonia liquids and gas in the coils



Read more: RV refrigerator, a cool deal
